ŞA-RA has superior experience in the turnkey construction of transformer and switch units. We continue to manage all stages involved in this field, such as project management, systems integration, topographic and geological surveys, electrical design, placement and construction projects, materials procurement, manufacturing of streel construction units, assembly, wiring, field tests and commissioning.

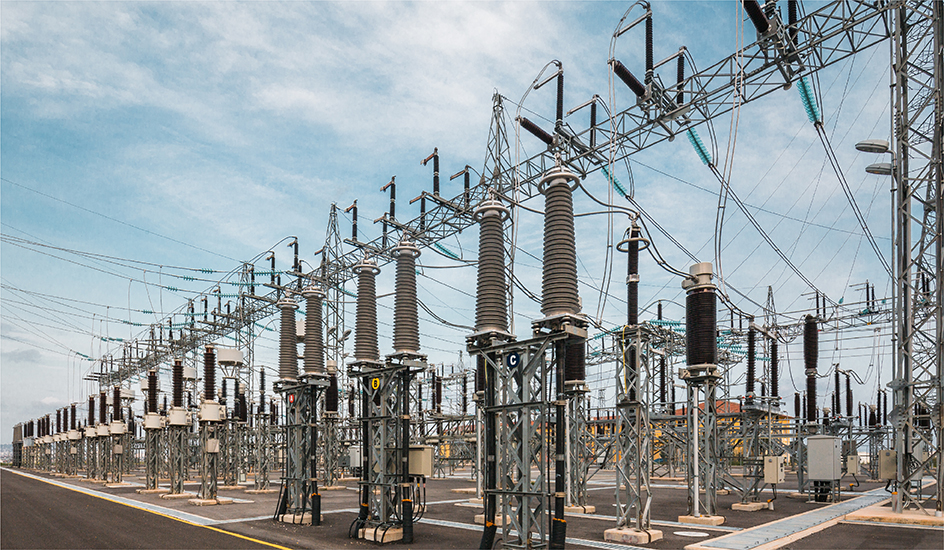

In the past, we successfully completed the turnkey construction of many Air-Insulated Switchgear (AIS) and Gas-Insulated Switchgear (GIS) transformer facility projects art voltage levels ranging from 154 kV to 380 kV. We carry out all surveying, project design, systems integration and construction work with our experienced team of experts in this field. We procure all materials and equipment required by our customers in keeping with international standards and our quality assurance system.

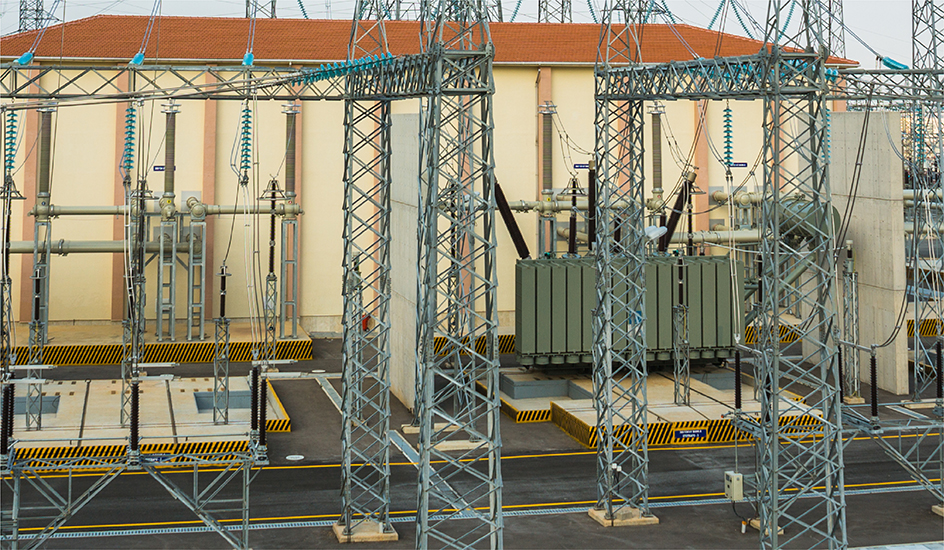

Furthermore, we undertook the 380 kV 600 MW HVDC BACK TO BACK transformer facility turnkey project, the first of its kind in Türkiye, for TEİAŞ, in cooperation with out consortium partner CET. The project design, materials procurement, construction and field work for the project were completed successfully in 2021 and the facility was commissioned. This hi-tech facility ensures two-way transfer of energy between Türkiye and Iran at 600 MWs
The services we provide include:
- The primary, construction, protection and control systems projects for GIS and AIS transformer units and HVDC systems
- Environmental Impact Assessment (EIA) activities and reports
- Preparation and implementation of ground surveys and analyses
- Placement design, architectural and structural projects for transformer facilities
- Electrical design and energy systems analyses
- Project design and integration for protection, control and SCADA systems
- Planning and management of testing, start-up and commissioning processes
Materials Procurement:
We procure the equipment used at transformer facilities in keeping with international quality standards. We work with first class producers who have an ISO 9001:2015 Quality Management System Certificate, as well as apply IEC and EN standards to obtain the key components required for transformer facilities.
During procurement, we act in accordance with contract specifications and technical requirements and closely monitor the delivery dates and quality control of equipment. We manage storage, logistics and assembly processes in keeping with our quality assurance system to deliver high -performing and reliable projects.
Construction and Facility Activities:
At transformer facilities, the process begins with field implementation and continues with the completion of construction and equipment assembly. Facilities that are built in accordance with the project and technical specifications are made ready for commissioning on a turnkey basis.
Upon the completion of assembly, we run detailed field tests for the system and all of its components using an independent testing firm and with the participation of the customer. Before the system is integrated to the network, we carry out a simulation to check all system settings and to ensure operability. Provisional commissioning is completed once the facility voltage tests have returned successful outcomes.
